3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A

Name: 3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A
Brand: Chengdu Sixpence Technology Co.,Ltd.
SKU: EV32AP
Price: 169.00 USD
Availability: InStock

Product Details

Place of Origin: Sichuan, China

Brand Name: Evoyage

Model Number: EV32AP

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: Negotiable

Packaging Details: 40.9 x 40.1 x 10.1 cm; 4 Kilograms

Delivery Time: 7-15 Working days

Payment Terms: T/T, L/C, Western Union, Paypal, Alipay, Cash

Supply Ability: 10000 Piece/Pieces per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    22KW EV Charging Cable, 1 Phase EV Charging Cable, 3.6KW Type 2 32A Charging Cable


Product Name:	EV Charger Cable 3.6KW-22KW Type2 To SAE J1722 Type 1 1/3 Phase 16/32A AC 220V-250V Male To Female EV Charging Cable	Phase:	1/3 Phase
Application:	Electric Vehicle Car Charging	Rated Current:	16/32A
Rated Voltage:	AC220V-250V,AC380V	Standard:	SAE J1772/Type 1
Mechanical Life:	10000 Times' Plug In/off	Function:	EV Car Charger
Material:	Thermoplastic	Warranty:	1 Year

Product Name:	EV Charger Cable 3.6KW-22KW Type2 To SAE J1722 Type 1 1/3 Phase 16/32A AC 220V-250V Male To Female EV Charging Cable
Phase:	1/3 Phase
Application:	Electric Vehicle Car Charging
Rated Current:	16/32A
Rated Voltage:	AC220V-250V,AC380V
Standard:	SAE J1772/Type 1
Mechanical Life:	10000 Times' Plug In/off
Function:	EV Car Charger
Material:	Thermoplastic
Warranty:	1 Year

Description

3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A

EV Charger Cable 3.6KW-22KW Type2 To SAE J1722 Type 1 1/3 Phase 16/32A AC 220V-250V Male To Female EV Charging Cable

3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A 0

Green World, Sauber Future

This electric car charging cable is from EVOYAGE. With professional R & D teams, production assembly lines and testing instrument, EVOYAGE is continuously committed to providing consumers with high quality and reliable products and promote the development of EV charging industry.

Follow these steps for easy charging

1.Park the car at the charging point and turn off the engine.

2.Insert the Type 2 male plug end into the charger’s outlet socket. Be sure to push firmly so the pins can fully locked.

3.Insert the Type 1 (SAE J1772, 5 pins) female plug end into your car’s inlet socket. Be sure to push firmly so the pins can fully locked.

4.Lock your car and the cable if the car supports.

5.After charging is complete, remove the plug from the car firstly and then remove the male plug from the charging unit.

6.The grip size is designed according to ergonomic principles, making it easier and more comfortable for the user

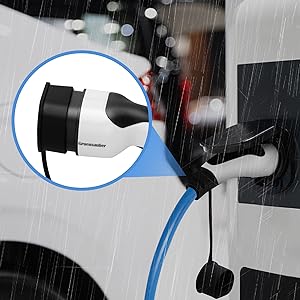

High Compatibility Compatible with all Type 1 (SAE J1772, 5pins) electric vehicles & plug- in hybrid vehicles.	Fast Reliable Charging Copper alloy silver-plated contacts, superior conductivity	Protective Waterproof and Dustproof protective cover for the charger hand

Type2 to Type1 EV Charging Cable is a prime solution for effortlessly charging your electric vehicle. The cable is fabricated with a durable 5X2.5mm^2+1X0.5mm^2 robust cable that satisfies the IEC 62196-2 EU European standard. Additionally, the plug’s body design has a small angle of horizontal bending, facilitating a simpler plugging and unplugging experience. The TPU material is highly resistant to bending, thereby ensuring a longer service life for the charging cable.

Buyer Reading

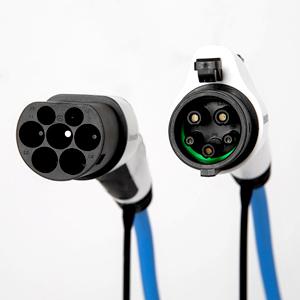

Compatible Cars - Please check your car's charging port before you order. If the port has 7 holes, it is a Type 2 car and needs a Type 2 to Type 2 charging cable. If the port has 5 holes, it needs a Type 2 to Type 1 charging cable.

Compatible Charging Units - Please use it on Type 2 (IEC 62196-2) socketed charging point which has 7 holes.

Plugged Directly - This charging cable must always be plugged directly into a charge point socket and can't be used as an extension or an adapter to a tethered lead.

Meet IEC 62196-2 (Mennekes, Type 2) EU European standard

Meet SAE J1772 2017 (Type 1) North American standard

Product Specifications

Rated current:	16/32 A (Single Phase/Three Phase)
Rated voltage:	AC220V-250V,AC380V
Insulation resistance:	>1000MΩ ,DC500V
Mechanical life:	unloaded plugged:>10000
Waterproof grade:	IP65(mating)
Plastic shell:	thermoplastic plastic
Conductor:	copper alloy, silver plated surface
Working environment ℃:	-30℃- +50℃
Terminal temperature rise:	<50K
Insertion and Extraction Force:	<100N
Cable Specification:	5X2.5mm^2+1X0.5mm^2;5X6.0mm^2+1X0.5mm^2


	Type 2 to Type 1, 32A, 5m	Type 2 to Type 1, 32A, 5m	Type 2 to Type 1, 16A, 5m	Type 2 to Type 1, 16A, 5m
Connector Type	Type 2 to Type 1	Type 2 to Type 1	Type 2 to Type 1	Type 2 to Type 1
Max. AC Charging Current	32A	32A	16A	16A
Max. Output	22kw	7.2kw	11kw	3.6kw
Cable Length	5mters	5meters	5meters	5meters
Phase	Single Phase	Three Phase	Single Phase	Three Phase
