Product Details
Place of Origin: Sichuan, China
Brand Name: Evoyage
Model Number: EV32AP
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: Negotiable
Packaging Details: 40.9 x 40.1 x 10.1 cm; 4 Kilograms
Delivery Time: 7-15 Working days
Payment Terms: T/T, L/C, Western Union, Paypal, Alipay, Cash
Supply Ability: 10000 Piece/Pieces per Week
Product Name: |

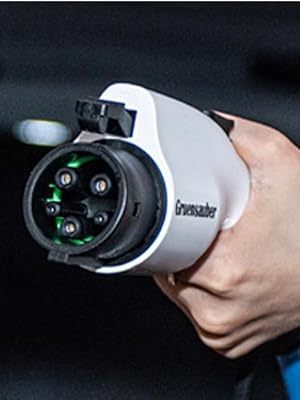

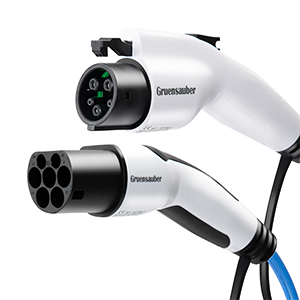

EV Charger Cable Type2 To SAE J1772 Type 1 1/3 Phase 16A/32A 220V-250V 3.6KW~22KE Male To Female Coiled Charger Cables |
Phase: |
1/3 Phase |
Application: |
Electric Vehicle Car Charging |
Rated Current: |
16A/32A |
Rated Voltage: |
AC220V-250V,AC380V |
Standard: |
SAE J1772/Type 1 |
Mechanical Life: |
10000 Times' Plug In/off |
Function: |
EV Car Charger |
Material: |
Thermoplastic |
Warranty: |
1 Year |
Product Name: |
EV Charger Cable Type2 To SAE J1772 Type 1 1/3 Phase 16A/32A 220V-250V 3.6KW~22KE Male To Female Coiled Charger Cables |
Phase: |
1/3 Phase |
Application: |
Electric Vehicle Car Charging |
Rated Current: |
16A/32A |
Rated Voltage: |
AC220V-250V,AC380V |
Standard: |
SAE J1772/Type 1 |
Mechanical Life: |
10000 Times' Plug In/off |
Function: |
EV Car Charger |
Material: |
Thermoplastic |
Warranty: |
1 Year |
This electric car charging cable is from EVOYAGE. With professional R & D teams, production assembly lines and testing instrument, EVOYAGE is continuously committed to providing consumers with high quality and reliable products and promote the development of EV charging industry.
1.Park the car at the charging point and turn off the engine.
2.Insert the Type 2 male plug end into the charger’s outlet socket. Be sure to push firmly so the pins can fully locked.
3.Insert the Type 1 (SAE J1772, 5 pins) female plug end into your car’s inlet socket. Be sure to push firmly so the pins can fully locked.
4.Lock your car and the cable if the car supports.
5.After charging is complete, remove the plug from the car firstly and then remove the male plug from the charging unit.
|
|
|
|
|---|---|---|
High CompatibilityCompatible with all Type 1 (SAE J1772, 5pins) electric vehicles & plug- in hybrid vehicles. |
Fast Reliable ChargingCopper alloy silver-plated contacts, superior conductivity |
ProtectiveWaterproof and Dustproof protective cover for the charger hand |
| Type 2 to Type 1, 32A, 5m | Type 2 to Type 1, 32A, 5m | Type 2 to Type 1, 16A, 5m | Type 2 to Type 1, 16A, 5m | |
|---|---|---|---|---|
| Connector Type | Type 2 to Type 1 | Type 2 to Type 1 | Type 2 to Type 1 | Type 2 to Type 1 |
| Max. AC Charging Current | 32A | 32A | 16A | 16A |
| Max. Output | 22kw | 7.2kw | 11kw | 3.6kw |
| Cable Length | 5m | 5m | 5m | 5m |
| Phase | Single Phase | Three Phase | Single Phase | Three Phase |
