Product Details
Place of Origin: Sichuan, China
Brand Name: Evoyage
Certification: CE,TUV
Model Number: EVO-CCS2-P-300A
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: Negotiable
Packaging Details: DC Fast EV charger CCS2 plug and socket packing: Standard export carton box
Supply Ability: 10000 Piece/Pieces per Week
Product Name: |
CCS2 Plug 80A 150A 200A 300A 1000V CCS Fast EV Charging Cable |
Application: |
Electric Vehicle Car Charging Station |
Rated Current: |
80/150/200/250/300A |
Rated Voltage: |
DC 1000V |
Standard: |
CCS2/IEC62196-2 Standard |
Mechanical Life: |
10000 Times' Plug In/off |
Cable: |
TUV Listed TPU Cable |
Material: |
Thermoplastic And Copper Alloy |
Product Name: |
CCS2 Plug 80A 150A 200A 300A 1000V CCS Fast EV Charging Cable |
Application: |
Electric Vehicle Car Charging Station |
Rated Current: |
80/150/200/250/300A |
Rated Voltage: |
DC 1000V |
Standard: |
CCS2/IEC62196-2 Standard |
Mechanical Life: |
10000 Times' Plug In/off |
Cable: |
TUV Listed TPU Cable |
Material: |
Thermoplastic And Copper Alloy |

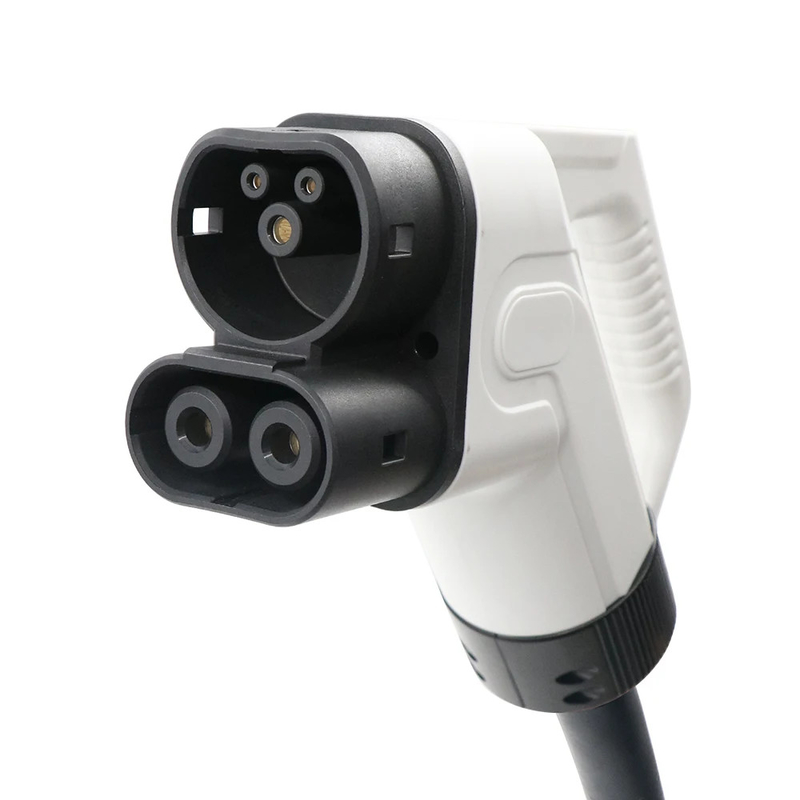

CCS2 Plug 80A 150A 200A 300A 1000V CCS Fast EV Charging Cable
CCS2 Female Plug 200A 300A power output
The Combined Charging System pluig is an industry-standard vehicle connector for
convenient charging of Electric Vehicles. CCS Type 2 supports AC & DC Charging standards of
Europe/ Australia and increasingly global standards.
The CCS Combo 2 uses the IEC 62196-3 standard and is the European version of the CCS fast charging
protocol. It combines the Type 2 AC plug with two supplementary DC pins, allowing both AC and DC fast charging.
CCS Combo 2 provides up to 200 Amps current and DC charging up to 350 kW, though most chargers deliver 50-150kW.
It is the mandated DC fast charging standard for European vehicles. The CCS Combo 2 plug is found in most European
DC fast chargers are compatible with the protocol. Key advantages are high power delivery, integrated communication, and
extensive usage across Europe. But it has limited deployment in North America currently.
C
|
CCS2 Plug 80A 150A 200A 300A 1000V CCS Fast EV Charging Cable |
|
