EV Car Charger Plug SAE J1772 Connector Type 1 16A 3.5KW 32A 7KW For Electric Vehicle Charging Station EVSE Wallbox

Name: EV Car Charger Plug SAE J1772 Connector Type 1 16A 3.5KW 32A 7KW For Electric Vehicle Charging Station EVSE Wallbox
Brand: Chengdu Sixpence Technology Co.,Ltd.
SKU: EV32AP
Price: 161.00 USD
Availability: InStock

Product Details

Place of Origin: Sichuan, China

Brand Name: Evoyage

Model Number: EV32AP

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: Negotiable

Packaging Details: 18.5X14.5X9 cm;1.000 kg

Delivery Time: 7-15 Working days

Payment Terms: T/T, L/C, Western Union, Paypal, Alipay, Cash

Supply Ability: 10000 Piece/Pieces per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    16a ev charging gun, 16a ev charging accessories, 32a ev charging gun


Product Name:	EV Car Charger Plug SAE J1772 Connector Type 1 16A 3.5KW 32A 7KW For Electric Vehicle Charging Station EVSE Wallbox	Rated Current:	16A / 32A
Rated Voltage:	110V-250V	Standard:	SAE J1772/Type1
Cable:	Black With TPU Jacket. Other Color Optional By Customizing	Shell:	White/ Black By Thermoplastic PC
Phase:	1	Warranty:	1 Year

Product Name:	EV Car Charger Plug SAE J1772 Connector Type 1 16A 3.5KW 32A 7KW For Electric Vehicle Charging Station EVSE Wallbox
Rated Current:	16A / 32A
Rated Voltage:	110V-250V
Standard:	SAE J1772/Type1
Cable:	Black With TPU Jacket. Other Color Optional By Customizing
Shell:	White/ Black By Thermoplastic PC
Phase:	1
Warranty:	1 Year

Description

EV Car Charger Plug SAE J1772 Connector Type 1 16A 3.5KW 32A 7KW For Electric Vehicle Charging Station EVSE Wallbox

EV Car Charger Plug SAE J1772 Connector Type 1 16A 3.5KW 32A 7KW for Electric Vehicle Charging Station EVSE Wallbox

Model No. and Cable specification

V1-16S-V: 3x2.5mm2+1x0.5mm2 (16A)

V1-32S-V: 3x6.0mm2+1x0.5mm2 (32A)

Electric Performance:

Protection rank: IP65

Fire retardant level: 94 V-0

Rated Current: 16A / 32A

Rated voltage: 250V / 480V

Insulation resistance: > 1000M ohm (DC 500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact resistance: 0.5m ohm Max

Coupled insertion force: >45N <80N

Operating temperature: -30C to 50C

Mechanical Testing

Mechanical life: no load plug in / pull out > 10000 times

Impact of external force: qualify 1m drop or 2 Ton vehicle run over

Materials Applied

Connector: by copper alloy with nickel bottom plating and 3um silver surface plating

Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing

Cable: black with TPU jacket. Other color optional by customizing


Charge Quickly level 1 EV charger charges your vehicle quickly and effortless.	J1772 Level 1 EV Charger This EV charger fits most EVs & PHEVs, can charge any type 1 (SAE J1722) vehicle. Tesla needs adapter, otherwise this electric car charger is not suitable for tasla.	Total 5M Whether you have a garage or need to charge outdoors, the total 5M charging cable provides all the options for your daily use.

This is an ‎SAE J1772 nozzle connector with cable. The maximum power provided from the plug is up to 7.2 kW (32A, 1-Phase). The replacement plug fits all EV charging cables for level 2 charging. The maximum power that the plug can provide is up to 7kW (32 Amperes, 1-Phase). The Female J1772 end plug/connector gets directly attached to the charging cable. The product has a nice appearance, a hand-held ergonomic design, and is easy to use.Suitable to connect with all private or public Level 2 charging cables and for use outdoors or indoors. The J1772 nozzle replacement gun/connector should be installed only by a qualified electrician.

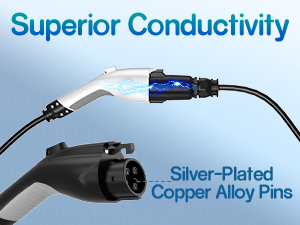

Superior Conductivity

Constructed with pioneering 5μm silver plated copper, can make overheating less and charge faster.

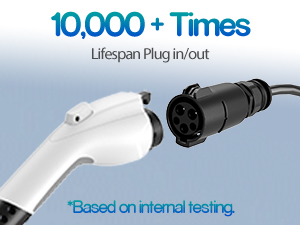

Long-lasting Lifespan

After internal testing, this durable j1772 cable can withstand more than 10,000 times plug in and out test.

Robust TPE Cable

Robust and flexible TPE ev extension cord is abrasion and corrosion resistant, can bent over 15000 times

Tough Material

Tough PC+PA66 material on the j1772 plug can withstand a pressure load up to 4400lbs
