Product Details
Place of Origin: Sichuan, China
Brand Name: Evoyage
Model Number: Evo32P
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: Negotiable
Packaging Details: 10 x 44 x 32 cm; 3Kilograms
Delivery Time: 7-15 Working days
Payment Terms: T/T, L/C, Western Union, Paypal, Alipay, Cash
Supply Ability: 10000 Piece/Pieces per Week
Product Name: |
5Meters Portable EV Charger Type2/IEC 62196/Type1/SAE J1772/GBT 3.3KW 16A , Home EV Charging Cable With Schuko |
Output Power: |
3.3KW |
Application: |
Electric Vehicle Car Charging |
Rated Current: |
8A To 16A Adjustable |
Rated Voltage: |
110V To 240V 1 Phase |
Standard: |
Type2/IEC 62196/Type1/SAE J1772/GBT 20234 |
Mechanical Life: |
10000 Times' Plug In/off |
Cable Length: |
5 Meters/ Customized |
Operating Temperature: |
-30℃ +50℃ |
Warranty: |
1 Year |
Product Name: |
5Meters Portable EV Charger Type2/IEC 62196/Type1/SAE J1772/GBT 3.3KW 16A , Home EV Charging Cable With Schuko |
Output Power: |
3.3KW |
Application: |
Electric Vehicle Car Charging |
Rated Current: |
8A To 16A Adjustable |
Rated Voltage: |
110V To 240V 1 Phase |
Standard: |
Type2/IEC 62196/Type1/SAE J1772/GBT 20234 |
Mechanical Life: |
10000 Times' Plug In/off |
Cable Length: |
5 Meters/ Customized |
Operating Temperature: |
-30℃ +50℃ |
Warranty: |
1 Year |
5Meters Portable EV Charger Type2/IEC 62196/Type1/SAE J1772/GBT 3.3KW 16A , Home EV Charging Cable with Schuko
Electric Vehicles (EVs) are the future. We applaud you for being ahead of the pack by making a wise, pioneering investment. The Evoyage EV Charger can make EV use way easier by supplementing your factory-issued charger. It produces a rapid-fire charge and has LED indicator lights that notify you of any charging errors.
✔ Standard IEC62196-2/GBT 20234/SAE J1772 cable fit to most EVs
✔ Level 2 charging capable
✔ LED indicator lights to manage charging errors
✔ 25ft cable fit to most driveways
✔ Damage-resistant
|
|
|
|
|---|---|---|
Less Time ChargingOur portable electric car charger charges your vehicle 4x faster than a standard 8A level 1 car charger. Power Plug: Schuko Power: 3.3 kW Max. |

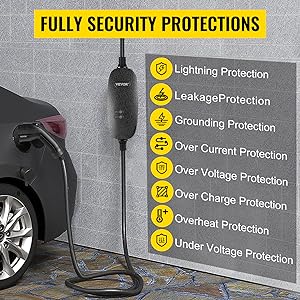

Fully Security ProtectionsA level 1+2 electric car charger can charge with peace of mind with a built-in intelligent chip. Such as lightning / leakage / grounding protection, etc. |

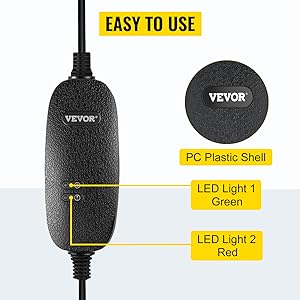

Easy to UseThe LED indicators allow you to take a quick glance to view the charging status. The control box is made of PC plastic material, fireproof grade rubber shell(UL94V-0). |
| Schuko Plug Type2 EV Charger 8-16Amp 5M - LCD | Schuko Plug Type2 EV Charger 16Amp 5M - LED | Schuko Plug Type1 EV Charger 8-16Amp 5M - LCD | Schuko Plug Type1 EV Charger 16Amp 5M - LED | Schuko Plug GBT EV Charger 16Amp 5M - LED | |
|---|---|---|---|---|---|
| Max. Output Power | 3.3kW | 3.3kW | 3.3kW | 3.3kW | 3.3KW |
| Charger Type | Portable Charger with Digital LCD Screen | Portable Charger with Digital LED Screen | Portable Charger with Digital LCD Screen | Portable Charger with Digital LED Screen | Portable Charger with Digital LED Screen |
| Length | 5 Metres | 5 Metres | 5 Metres | 5 Metres | 5 Metres |
| Rated Voltage | 110V to 240V 1 phase | 240V 1 Phase | 110V to 240V 1 phase | 240V 1 Phase | 240V 1 Phase |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Charging Socket | Schuko to Type 2 | Schuko to Type 2 | Schuko to Type 1 | Schuko to Type 1 | Schuko to GBT |
| Charging Options | 8A to 16A adjustable | Fixed 16A | 8A to 16A adjustable | Fixed 16A | Fixed 16A |
Outstanding points for this EV charger
1. when choosing a charger, safety is your first consideration. This EV charger has already passed all the tests of TUV CE. which includes safety setting with lightning protection / overvoltage / overcurrent / overtemperature and leakage protection, adopts type A +DC6ma EU standards, so it is much safer than other ordinary EV chargers.
2. maximum charging speed is 3.3kW-h for daily use. Slow charging can extend the battery life, if you have engouh time, please choose the slow charger instead of supercharger. And it is a portable EV charger, you can carry it with you when traveling instead of spanding your time to find supercharger station.
3. current adjustable and memory function: 8A 10A 13A 16A adjustable, EV charger with momory function, can remember the current of last time. If you choose 8A, the next time will also be 8A.
4.New timer function: with 1 to 10 hours start charging later appointment function, you can start charging when the electricity price is lower. come home 20:00, but want to charge 23:00, so set charging 3 hours later. Very useful function!
Specification:
Input power: 110V to 240V 1 phase
Current: With LCD display Current: 8A to 16A adjustable；With LED display Current: Fixed 16A
Connection type: Type2/IEC 62196/Type1/SAE J1772/GBT 20234
Phases: 1
Total length: 5/10 meters
RCD: Type A AC RCD+DC RCD
Operating temperature: -30°C - +50°C
Storage temperature: -40°C - +80°C
Protection class: cable box: IP65, type 2 charging plug: IP55
Contact socket: copper alloy, silver + thermoplastic on the top side
Impact from external force: can be 1m drop and 2t
Withstand vehicle overpressure
Housing fire protection class:UL94V-0. Makes charging easy and safe!
